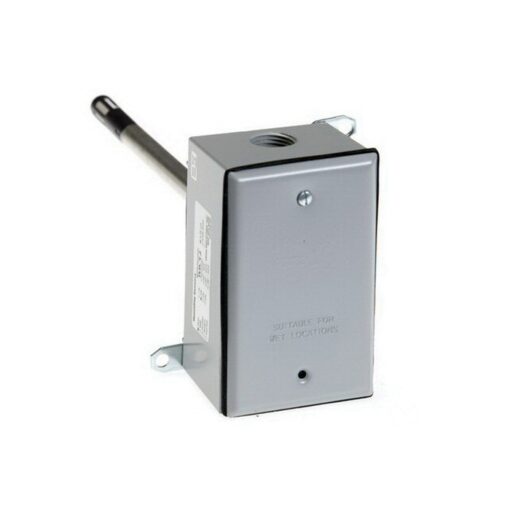

The Veris HD2XVSX RH Duct,2%,5/10VDC
SPECIFICATIONS
| Humidity Measurement Accuracy | : | ±2% |
| Outputs | : | Analog output |
| Output Specifications | : | 0 – 5 V | 0 – 10 V |
| Temperature Sensor Type | : | None |
| Humidity Calibration Certificate | : | None |
| Application | : | Duct |
| Application Zone | : | Plant Room |
| Brand | : | Veris |
| Color | : | Gray |
| Dimension Depth | : | 2″ (51 mm) |
| Dimension Height | : | 4.6″ (117 mm) |
| Dimension Probe Diameter | : | 0.5″ (13 mm) |
| Dimension Probe Length | : | 8.5″ (216 mm) |
| Dimension Width | : | 2.9″ (74 mm) |
| Electrical Wiring Size | : | 22 AWG (0.32 mm²) |
| Enclosure Material | : | Cast Aluminum/Steel Cover |
| Feature Level | : | Deluxe |
| Humidity Measurement Drift | : | ±1% @ 68 °F (20 °C) annually for 2 years |
| Humidity Measurement Range | : | 0 – 100% RH |
| Humidity Measurement Resolution | : | 0.1% RH |
| Measurement Type | : | Humidity |
| Mounting | : | Duct |
| Operating Humidity | : | 0-100% RH, non-condensing (will recover from saturation) |
| Operating Temperature | : | -40 – 122 °F (-40 – 50 °C) |
| Product Type | : | Sensor |
| Range | : | HD |
| Product Certification | : | CE |
| Supply Voltage AC Nominal | : | 24 VAC |
| Supply Voltage DC Range | : | 12 – 30 VDC |
| Warranty | : | 5 years (1 year on replaceable RH element) |
| Humidity Sensor Type | : | Thin film capacitive, replaceable |
FEATURES
HD series deluxe humidity transmitters provide an ideal solution for measuring relative humidity in a wide range of conditions. All devices are equipped with a thin-film capacitive sensor that is easily replaceable in the field. The duct mounted HD is encased in a die-cast metal housing for extra strength. All deluxe HD models come with a standard 5 years warranty.
- Sensor element – thin-film capacitive sensor element recovers from 100% saturation
- Accuracy – fully interchangeable element to 2% accuracy no calibration
- Field replaceable – replace element in the field maintain accuracy and minimize downtime
- Easy servicing – duct sensor element can be serviced without disturbing conduit
- Potted circuitry – prevents costly condensate shorts
- Flexibility – polarity insensitive, 3-wire 0 to 5/0 to 10 VDC versions flexible systems compatibility save time in the field, stock fewer devices
- RH duct enclosure
- 3-wire, observe polarity
- Digitally profiled thin-film capacitive (32-bit mathematics) US Patent 5,844,138 HS element, this sensing element has a 1 year warranty
| Weight | 3 lbs |
|---|---|
| Dimensions | 15 × 7 × 5 in |
