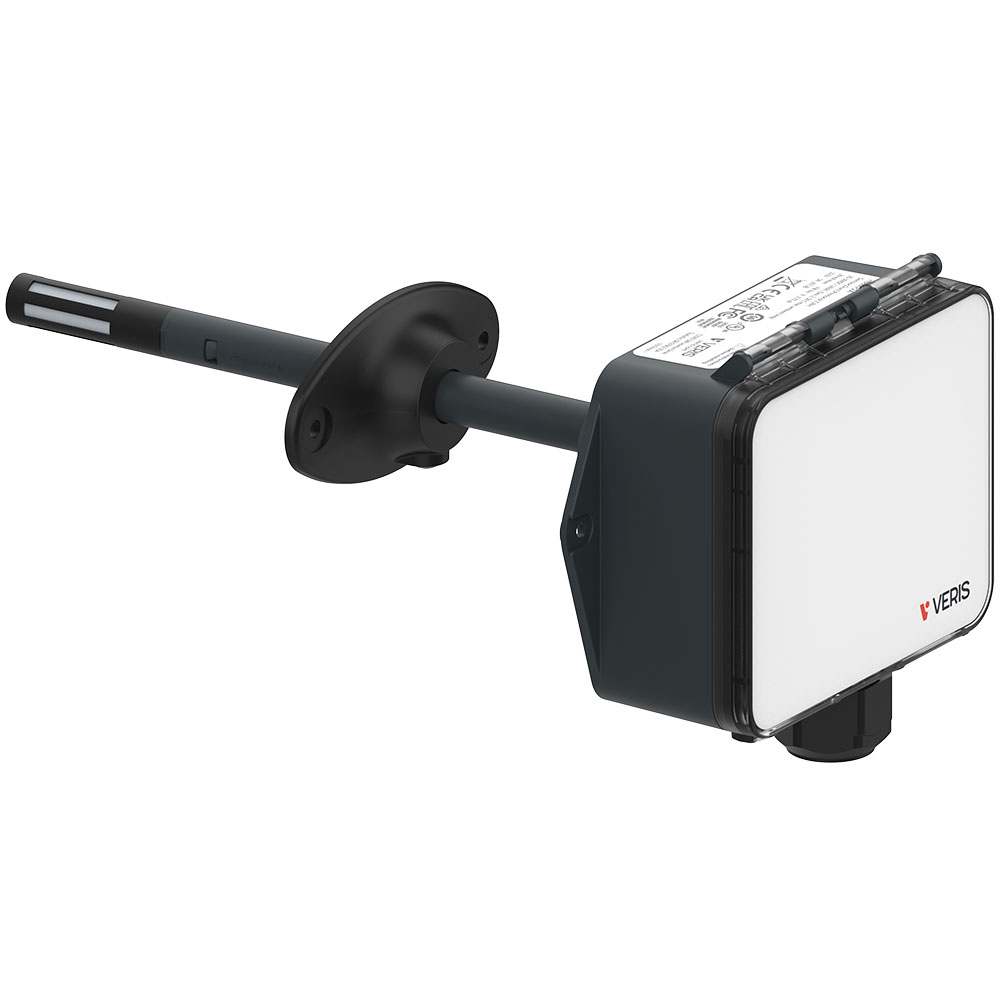

HD2XA2D Veris Humidity Sensor

HD2 Series Analog Humidity Sensors provide an ideal solution for measuring relative humidity in a wide range of conditions. All models are equipped with a solid state capacitive humidity sensor that is easy to replace in the field. They are also equipped with a solid state temperature sensor that provides high accuracy measurements.

HD2XA2D is an all-in-one device combining humidity and temperature sensing. Intended for duct mount applications, the device ensures a building’s optimum temperature and humidity levels, resulting in greater energy efficiency. Each device is an active sensor that converts a humidity or temperature measurement into 4-20mA, 0 to 5 Vdc or 0 to 10 Vdc analog output.

• Measurement: Humidity and Temperature
• Humidity sensor type: Solid State capacitive, replaceable
• Temperature Sensor Type: 10K Type 2 Thermistor
• Calibration Free: Fully interchangeable element to 1% or 2% accuracy with NIST calibration certificate
• Maintain Accuracy and minimize downtime and cost: field replaceable RH element and temperature transmitter
• Easy to install: Latch on sensor cover and screwless terminal block wiring with spring actuator
• Great for museums, schools, printing shops, and other locations requiring humidity control
