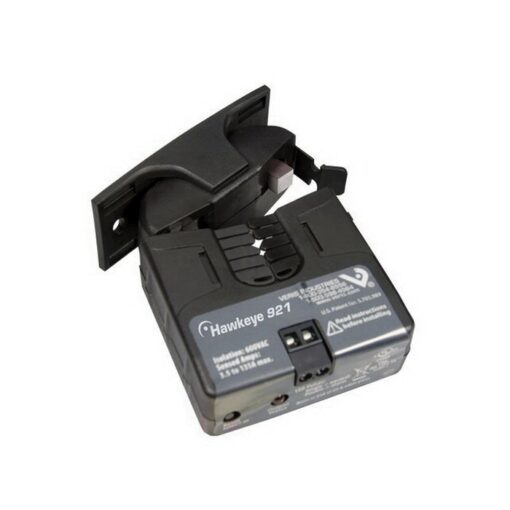

H921 Veris Current Transducer Veris
$63.20
Current Transducer, Split-Core, 0-120A, 4-20mA; Hawkeye 0 to 30/60/120 A Input 4 to 20 mA DC Output Analog Current Transducer, Split-Core, 1.1 x 0.8 in
The Veris H921 Veris Current Transducer Current Transducer, Split-Core, 0-120A, 4-20mA
SPECIFICATIONS
| Application | : | Building Automation Systems |
| Current Measurement Accuracy | : | ±2% of F.S. above 10% of F.S. |
| Current Measurement Range | : | 0 – 30 A | 0 – 60 A | 0 – 120 A |
| Current Sensor type | : | Current Transducer, AC |
| Electrical Wiring Size | : | 24 – 14 AWG (0.2 – 2.1 mm²) |
| Measurement Type | : | AC Current |
| Model | : | H921 |
| Monitored Frequency Range | : | 50 – 60 Hz |
| Monitored Wire Size | : | 0.8″ (21 mm) |
| Mounting | : | Split Core |
| Operating Humidity | : | 10 – 90% RH, non-condensing |
| Operating Temperature | : | 5 – 140 °F (-15 – 60 °C) |
| Output Specifications | : | 4 – 20 mA |
| Outputs | : | Analog output |
| Product Certification | : | UL | CE |
| Product Type | : | Sensor |
| Range | : | HX21 Series |
| Relay Coil Voltage | : | None |
| Relay Contact Ratings | : | None |
| Relay Poles/Throw | : | None |
| Warranty | : | 5 years |
FEATURES
The Hawkeye H921 provide accurate load trending information with a proportional 4 to 20 mA output signal. Preset slide switches provide easy field setup of sensed amperage range with no need for jumpers.
- Power the sensor, and receive the signal with only 2-wires, lower cabling and commissioning costs than with traditional 3-wire sensors
- Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
- Factory calibrated switch-selectable ranges for high resolution and installation ease
- Three field-selectable ranges per unit, fewer versions to choose from, stock, and install
- Removable mounting bracket for installation flexibility
- Added flexibility – bracket on H921 can be installed in three different configurations
- 100% solid-state no moving parts to fail
- 30 mA at 12 to 30 VDC sensor power
| Weight | 3 lbs |
|---|---|
| Dimensions | 5 × 6 × 2 in |
