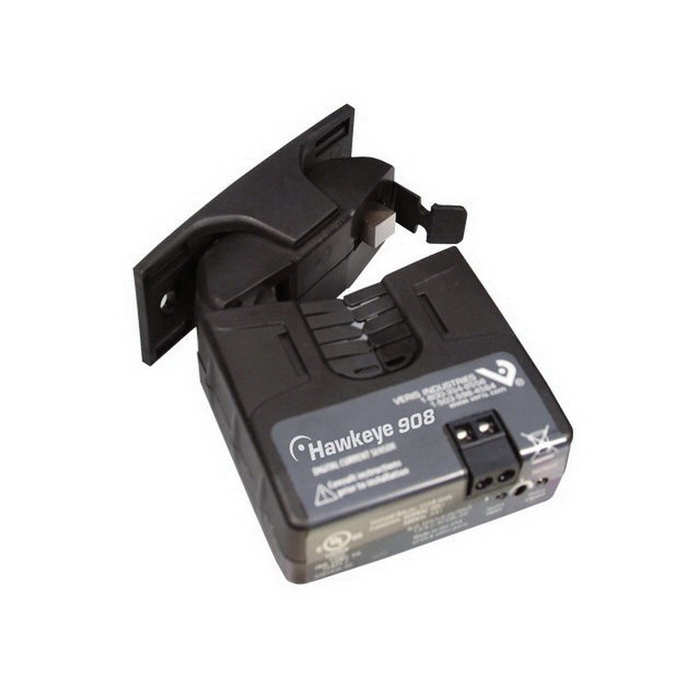

H908 Veris Current Sensor
$79.80
Split Core Current Sensor,Adj,Calibration LEDs, Range:Hawkeye 2.5 to 135 A Adjustable Trip Point Sta
3 in stock
The Veris H908 Veris Current Sensor Split Core Current Sensor, Adj, Calibration LEDs,Range:2.5-135AAC,Output: N.O.
Specifications:
| Application | : | Building Automation Systems |
| Current Measurement Range | : | 2.5 – 135 A |
| Current Sensor type | : | Current Switch, AC |
| Electrical Wiring Size | : | 24 – 14 AWG (0.2 – 2.1 mm²) |
| Measurement Type | : | AC Current |
| Model | : | H908 |
| Monitored Frequency Range | : | 50 – 60 Hz |
| Monitored Wire Size | : | 0.8″ (21 mm) |
| Mounting | : | Split Core |
| Operating Humidity | : | 10 – 90% RH, non-condensing |
| Operating Temperature | : | 5 – 140 °F (-15 – 60 °C) |
| Output Specifications | : | N.O. 1 A @ 30 VAC/DC |
| Outputs | : | Switch output |
| Product Certification | : | UL | CE |
| Product Type | : | Sensor |
| Range | : | HX08 Series |
| Relay Coil Voltage | : | None |
| Relay Contact Ratings | : | None |
| Relay Poles/Throw | : | None |
| Setpoint | : | Adjustable |
| Warranty | : | 5 years |
Features:
Hx08 series adjustable current switches offer high performance, with a wide array of amperage range options. These products can accurately detect belt loss, coupling shear or other mechanical failure on unit vents, exhaust fans, recirculation pumps and other fixed loads down to as little as 1/5 hp.
- Retrofit or new construction – high performance devices in split and solid-core housings
- Adjustable trip point – precise current trip point setting
- Small size – fits easily inside small enclosures
- Self-gripping iris for easy installation
- Status LEDs – for easy setup and local indication
- Induced from monitored conductor sensor power
- On/off status for variable frequency drive (VFD) outputs at 12 to 115 Hz, provides functional insulation only
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 6 × 2 in |
