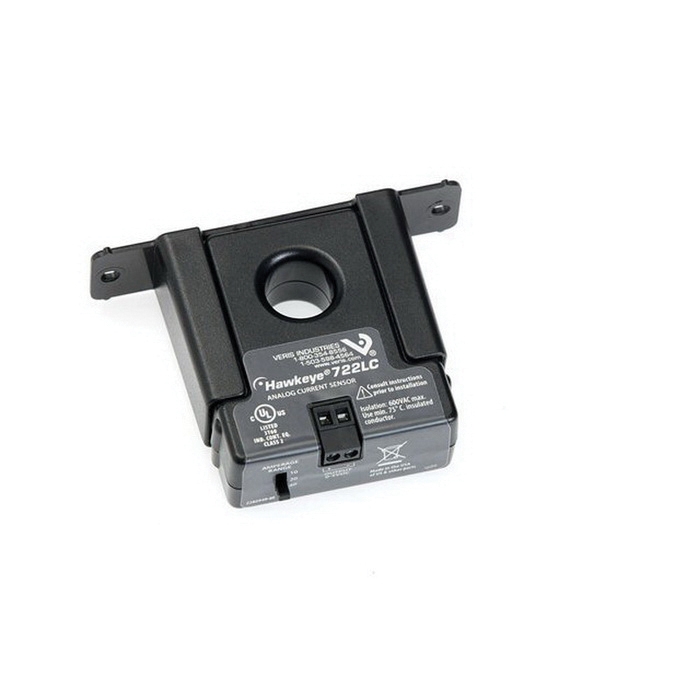

H722LC Veris Current Transducer Veris
$66.60
SolidCore Current Transducer,Range:0-10,0-20,0-40AAC Switch Select,Output:0-5V
The Veris H722LC Veris Current Transducer SolidCore Current Transducer,Range:0-10,0-20,0-40AAC Switch Select,Output:0-5V
SPECIFICATIONS
| Mounting | : | Solid Core |
| Current Measurement Range | : | 0 – 10 A | 0 – 20 A | 0 – 40 A |
| Measurement Type | : | AC Current |
| Output Specifications | : | 0 – 5 VDC |
| Outputs | : | Analog output |
| Relay Coil Voltage | : | None |
| Relay Contact Ratings | : | None |
| Relay Poles/Throw | : | None |
| Application | : | Building Automation Systems |
| Current Measurement Accuracy | : | ±2% of F.S. or 0.4 A, whichever is greater, above 10% of F.S. |
| Current Sensor type | : | Current Transducer, AC |
| Electrical Wiring Size | : | 24 – 14 AWG (0.2 – 2.1 mm²) |
| Model | : | H722LC |
| Monitored Frequency Range | : | 50 – 60 Hz |
| Monitored Wire Size | : | 0.7″ (18 mm) |
| Operating Humidity | : | 10 – 90% RH, non-condensing |
| Operating Temperature | : | 5 – 140 °F (-15 – 60 °C) |
| Product Type | : | Sensor |
| Range | : | HX22 Series |
| Product Certification | : | UL | CE |
| Warranty | : | 5 years |
FEATURES
The Hawkeye 722LC provide accurate load trending information with a proportional 0 to 5 VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers.
- Self-powered analog current sensor simplifies installation
- No external power required for sensor
- Factory calibrated ranges for increased flexibility and resolution
- No jumpers on unit, reduces installation error
- New construction – economical solid-core models feature adjustable bracket for easy alignment
- Induced from monitored conductor sensor power
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 5 × 2 in |
