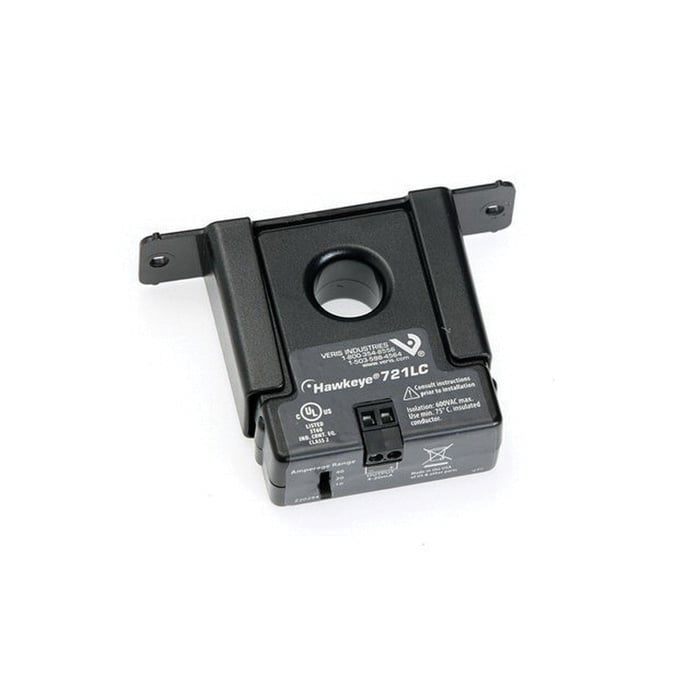

H721LC Veris Current Transducer Veris
$79.00
Solid Core Current Transducer,Range:0-10,0-20,0-40AAC Switch Select,Output:4-20
The Veris H721LC Veris Current Transducer Solid Core Current Transducer,Range:0-10,0-20,0-40AAC Switch Select,Output:4-20
SPECIFICATIONS
| Application | : | Building Automation Systems |
| Current Measurement Accuracy | : | ±2% of F.S. or 0.4 A, whichever is greater, above 10% of F.S. |
| Current Measurement Range | : | 0 – 10 A | 0 – 20 A | 0 – 40 A |
| Current Sensor type | : | Current Transducer, AC |
| Electrical Wiring Size | : | 24 – 14 AWG (0.2 – 2.1 mm²) |
| Measurement Type | : | AC Current |
| Model | : | H721LC |
| Monitored Frequency Range | : | 50 – 60 Hz |
| Monitored Wire Size | : | 0.7″ (18 mm) |
| Mounting | : | Solid Core |
| Operating Humidity | : | 10 – 90% RH, non-condensing |
| Operating Temperature | : | 5 – 140 °F (-15 – 60 °C) |
| Output Specifications | : | 4 – 20 mA |
| Outputs | : | Analog output |
| Product Certification | : | UL | CE |
| Product Type | : | Sensor |
| Range | : | HX21 Series |
| Relay Coil Voltage | : | None |
| Relay Contact Ratings | : | None |
| Relay Poles/Throw | : | None |
| Warranty | : | 5 years |
FEATURES
The Hawkeye H721LC provide accurate load trending information with a proportional 4 to 20 mA output signal. Preset slide switches provide easy field setup of sensed amperage range with no need for jumpers.
- Power the sensor, and receive the signal with only 2-wires, lower cabling and commissioning costs than with traditional 3-wire sensors
- Economical solid-core features adjustable bracket for easy alignment
- Factory calibrated switch-selectable ranges for high resolution and installation ease
- Three field-selectable ranges per unit, fewer versions to choose from, stock, and install
- Removable mounting bracket for installation flexibility
- 100% solid-state no moving parts to fail
- 30 mA at 12 to 30 VDC sensor power
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 5 × 2 in |
