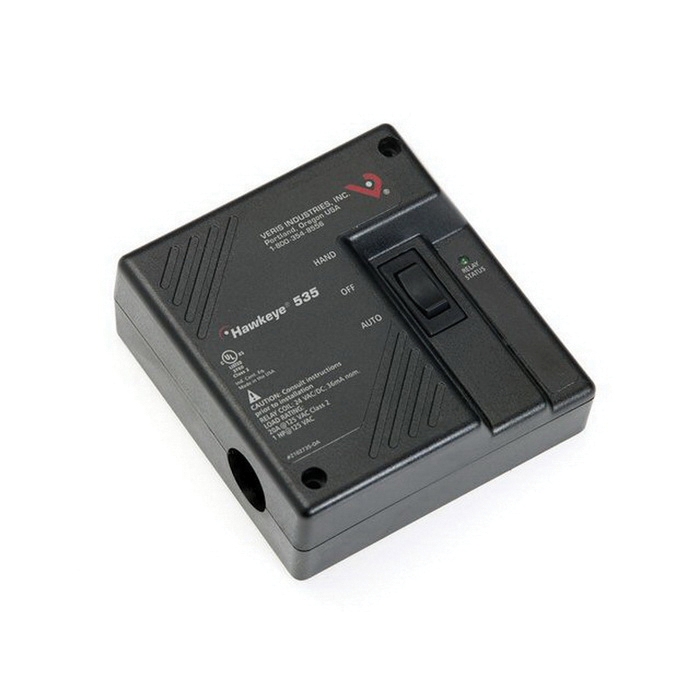

H535 Veris
$70.30
Relay w/HOA,20A(r),Relay-Coil:24VAC/DC,Contact:1HP@120VAC; Hawkeye 0.25 to 15 A Combination Switching Relay, SPST, NO/NC Field-Selectable
The Veris H535 Relay w/HOA,20A(r),Relay-Coil:24VAC/DC,Contact:1HP@120VAC
SPECIFICATIONS
| Application | : | Building Automation Systems |
| Current Measurement Range | : | None |
| Current Sensor type | : | Current Transducer, AC, with Relay |
| Electrical Wiring Size | : | 24 – 14 AWG (0.2 – 2.1 mm²) |
| Hand-Off-Auto | : | Yes |
| Measurement Type | : | AC Current |
| Model | : | H535 |
| Monitored Frequency Range | : | 50 – 60 Hz |
| Mounting | : | 4 x 4 Box |
| Operating Humidity | : | 10 – 90% RH, non-condensing |
| Operating Temperature | : | 5 – 122 °F (-15 – 50 °C) |
| Output Specifications | : | None |
| Outputs | : | Relay |
| Product Certification | : | UL |
| Product Type | : | Sensor |
| Range | : | Motor Control Series |
| Relay Coil Voltage | : | 24 VAC/DC |
| Relay Construction | : | Mechanical |
| Relay Contact Ratings | : | Resistive: 15 A @ 277 VAC | Motor: 1 H.P. @ 120 VAC |
| Relay Poles/Throw | : | SPST |
| Setpoint | : | None |
| Warranty | : | 5 years |
FEATURES
The Hawkeye 5xx series combines an industrial grade load switching relay, hand-off-auto (HOA) switch in an easy to install remote enclosure making the series ideal for monitoring, directly controlling, and troubleshooting the control wiring of fractional horsepower motors. The relay, and HOA switch are combined in a series circuit. Once a 500 is wired in series between the power source and motor, all three components are installed. The housing provides physical separation and multiple wiring exits to isolate control and high voltage wiring. A 500 can be mounted directly on 2 or 4 gang junction boxes, nippled to a field enclosure, or stand alone.
- Relay with HOA switch
- Command relay and HOA switch in a single series circuit one line connection for three devices
- Gang box mounting – mounts directly onto gang box, flush to existing enclosures and standalone
- HOA provides true relay control ideal for troubleshooting control wiring
- SPST relay is field-selectable for NO or NC operation
- All models rated up to 1 hp at 120 VAC one product for all fractional HP motor control and status applications
- Induced from monitored conductor sensor power
- Relay power LED
| Weight | 2 lbs |
|---|---|
| Dimensions | 5 × 4 × 2 in |
