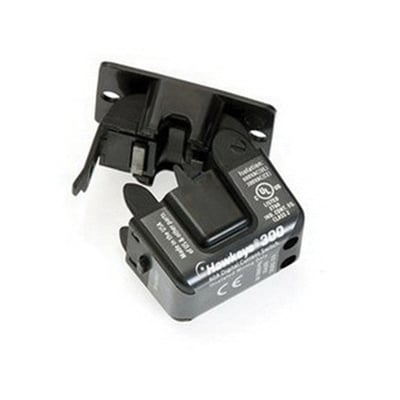

H300 Veris MICRO Sensor Veris
$35.10
MICRO Current Sensor; SPLIT CORE, Fixed Setpoint, Amp Range: 0.15-60A, Output: 1.0A@30VAC/DC. Low Turn-On.
The Veris H300 Veris MICRO Sensor MICRO Current Sensor; SPLIT CORE, Fixed Setpoint, Amp Range: 0.15-60A, Output: 1.0A@30VAC/DC. Low Turn-On.
SPECIFICATIONS
| Application | : | Building Automation Systems |
| Current Measurement Range | : | 0.15 – 60 A |
| Current Sensor type | : | Current Switch, AC |
| Electrical Wiring Size | : | 24 – 14 AWG (0.2 – 2.1 mm²) |
| Measurement Type | : | AC Current |
| Model | : | H300 |
| Monitored Frequency Range | : | 50 – 60 Hz |
| Monitored Wire Size | : | 0.3″ (8 mm) |
| Mounting | : | Split Core |
| Operating Humidity | : | 10 – 90% RH, non-condensing |
| Operating Temperature | : | 5 – 140 °F (-15 – 60 °C) |
| Output Specifications | : | N.O. 1 A @ 30 VAC/DC |
| Outputs | : | Switch output |
| Product Certification | : | UL | CE |
| Product Type | : | Sensor |
| Range | : | HX00 Series |
| Relay Coil Voltage | : | None |
| Relay Contact Ratings | : | None |
| Relay Poles/Throw | : | None |
| Setpoint | : | Fixed |
| Warranty | : | 5 years |
FEATURES
Hawkeye 300 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps, and other fixed loads where belt loss is not a concern. Veris has applied new technology to the H300 model to achieve impressive improvement in turn-on levels. The Hawkeye H300 have the lowest turn-on current in the industry at a mere 0.15 A.
- More reliable for status than relays across auxiliary contacts
- Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
- Low setpoint – minimum trip point as low as 0.15 A, avoids the need for multiple wraps of the conductor through the sensor even on loads as small as 1/5 hp
- Removable mounting bracket provides installation flexibility
- Quick installation – split-core for fast retrofit installation
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 4 × 2 in |
