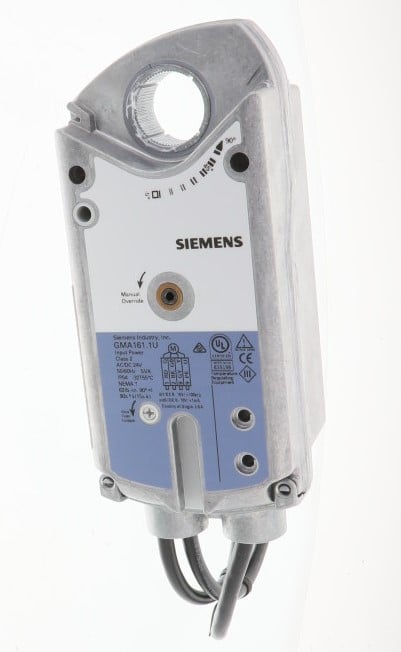

GMA161.1U Siemens Actuator
$268.76
GMA161.1U Siemens Actuator Spring Return, 62 lb-in (7Nm), 24 Vac/dc, 0-10 Vdc Control, 90sec Run, Feedback
2 in stock (can be backordered)
GMA161.1U Siemens Actuator
The Siemens GMA161.1U MOD SR 24V,62LBIN,
| Control or Fire/Smoke Type | Control Damper |
| Torque | 62 lb-in |
| Positioning time | Open:90 s, Close:15 s |
| Position feedback | Yes |
| Power consumption | Running: 5 VA / 3.5 W, Holding: 4 VA / 3 W |
| Ambient humidity, operation | 95 % r.h. |
| Angular rotation | 90° |
| Operating voltage | 19.2…28.8 V24 V#AC/DC |
| Frequency | 50/60 Hz |
| Cable length | 3 ft |
| Dimensions (W x H x D) | 3.25 x 8.38 x 2.38 in |
| Material, housing | NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
| Degree of protection | IP54 |
Normally ships in 4-5 days or sooner… Call 800-323-2739 for details!
| Weight | 7 lbs |
|---|---|
| Dimensions | 14 × 6 × 4 in |
