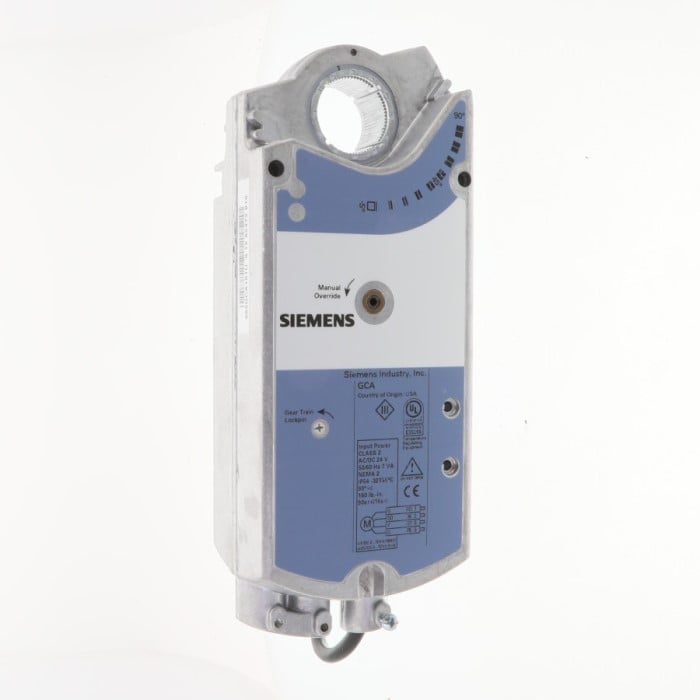

GCA156.1P Siemens Actuator
$405.54
SR
160 lb-in, 24Vac/dc 2-10Vdc, 90s Run Feedback Signal Inv 2-Aux, Plen
Function
GCA…1P / GCA…1U
OpenAir Damper Actuator, SR, 160 lb-in
OpenAir GCA Series Electric Damper Actuator, spring return, 160 lb-in
| Name | GCA156.1P |
| Product Description | OpenAir Damper Actuator, SR, 160 lb-in |
| Auxiliary switch | 2 |
| Cable length | 3 ft |
| Operating voltage | 7…28.8 V24 V#AC/DC |
| Position feedback | Yes |
| Positioning time | Open:90 s; Close:15 s |
| Power consumption | Running: 7 VA / 5 W, Holding: 5 VA / 3 W |
Technical specifications
|
Actuator Type |
Spring return |
|
Actuation Style |
Rotary |
|
Control or Fire/Smoke Type |
Control Damper |
|
Torque |
160 lb-in |
|
Fail Safe |
Yes |
|
Positioning time |
Operating: 90 s, Closing (power loss): Typical 15 s |
|
Position feedback |
No |
|
Ambient temperature, operation |
-25 to 130 °F (-32 to 55 °C) |
|
Frequency |
50/60 Hz |
|
Cable length |
3 ft |
|
Dimensions (W x H x D) |
Actuator: 4-3/4 W x 11-13/16 H x 2-7/8 D in. |
|
Material, housing |
NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
|
Warranty |
5 Years |
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
