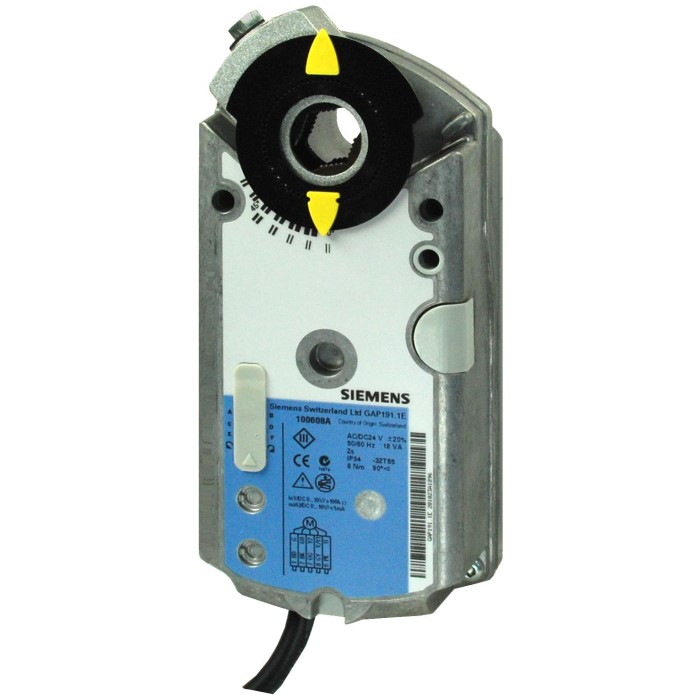

GAP196.1P Siemens Actuator
$315.24
Damper
Actuator, Fast Acting, Fail-In-Place,53 lb-in, Switches
Function
GAP19..1P
OpenAir Damper Actuator, Rotary, NSR, Fast Acting
OpenAir Damper Actuator, Rotary, Non-Spring Return, Fast Acting
Technical specifications
|
Actuator Type |
Fast-Acting/Fail-In-Place |
|
Actuation Style |
Rotary |
|
Control or Fire/Smoke Type |
Control Damper |
|
Plenum or Standard Rating |
Plenum |
|
Torque |
53 lb-in |
|
Fail Safe |
No |
|
Control Signal |
Universal |
|
Positioning signal |
2 or 2 to 10 Vdc; 0 or 4 to 20 mA |
|
Positioning time |
Runtime (operating with motor) |
|
Power consumption |
Running: 28 VA / 19 W; Holding: 8 VA / 5 W |
|
Ambient temperature, operation |
0 to 122 °F (-18 to 50 °C) |
|
Ambient humidity, operation |
95% rh |
|
Operating voltage |
24 VAC; 24 VDC |
|
Supply Voltage |
24 VAC/DC |
|
Frequency |
50/60 Hz |
|
Cable length |
3 ft |
|
Dimensions (W x H x D) |
Actuator: 3-1/4 W x 8-3/8 H x 2-3/8 D in. |
|
Material, housing |
NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
|
Warranty |
5 Years |
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
