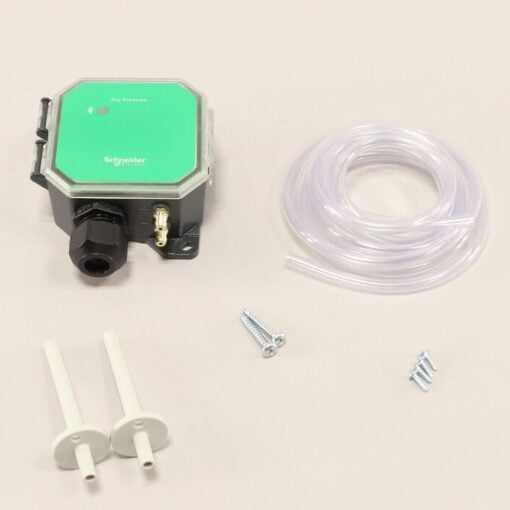

EPP301 Schneider Electric Pressure Sensor
Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa
PRESSURE-VEL DRY PANEL 1IN
Product Specifications
| [Us] rated supply voltage | 12…30 V DC |
| 24 V AC | |
| Accuracy | +/- 1 % FS |
| Application | Air Velocity Monitoring |
| Duct Pressure Monitoring | |
| Fan Monitoring | |
| Filter Monitoring | |
| VAV Control | |
| Brand | Schneider Electric |
| Burst Pressure | 5 psid (34.5 kPa) |
| By Schneider | Yes |
| Controlled Fluid | Air |
| Gas | |
| Depth | 1.65 in (42 mm) |
| Display Type | LCD |
| Electrical Connection | – AWG 22 |
| Final Result for Connectable | Connectable ready |
| Final Result for Flywheel performance tracking | Connectable ready |
| Fitting Size | 6 mm (0.24″) |
| Fitting Type | Male |
| Height | 4.41 in (112 mm) |
| Humidity Calibration Certificate | None |
| IP Degree of Protection | IP65 |
| Local Signalling | Red/green/blue LED |
| Location | Plant Room |
| Manufacturer | Veris Industries |
| Material | Brass Fitting |
| Mounting Mode | Panel |
| Mounting Support | Panel |
| Net Weight | 0.28 lb(US) (0.125 kg) |
| Output Type | Analog 3 wires 0…10 V DC |
| Analog 3-wire 0…5 V DC | |
| Analog 4…20 mA | |
| Pressure Measurement Drift | Less than 2.0% |
| Pressure Measurement Range | 0…0.1″ W.C. (0…25 Pa) |
| 0…0.25″ W.C. (0…50 Pa) | |
| 0…0.5″ W.C. (0…100 Pa) | |
| 0…1″ W.C. (0…250 Pa) | |
| Probe Diameter | 0.28 in (7 mm) |
| Probe Length | 7.40 in (188 mm) |
| Product Certifications | CE |
| Product Or Component Type | Pressure transmitter sensor |
| Sensor Model | EPP301 |
| Standards | EN 61000-6-1 |
| EN 61000-6-3 | |
| EN 61326-1 | |
| EN 61326-2-3 | |
| Temperature Ambient Operating Range | -4…140 °F (-20…60 °C) |
| Type Of Measurement | Differential Pressure |
| Width | 3.46 in (88 mm) |
Documents
| Installation instructions | SpaceLogic Sensors, EP Series Installation Instructions | |||
| Specification sheet | SpaceLogic Sensors, EP Series Specification Sheet |
| Weight | 2 lbs |
|---|---|
| Dimensions | 9 × 6 × 3 in |
