| MODEL SIZE | 54 |
| FILTER ELEMENT GRADE | 3: Max Eff. Oil Removal |
| MODEL | E3-54 |
| STAINLESS STEEL ELEMENT | NO |
| FLOW RATING | 1000 SCFM |
| DESIGN TEMP | 150°F |
| WEIGHT | 1.6 LBS |

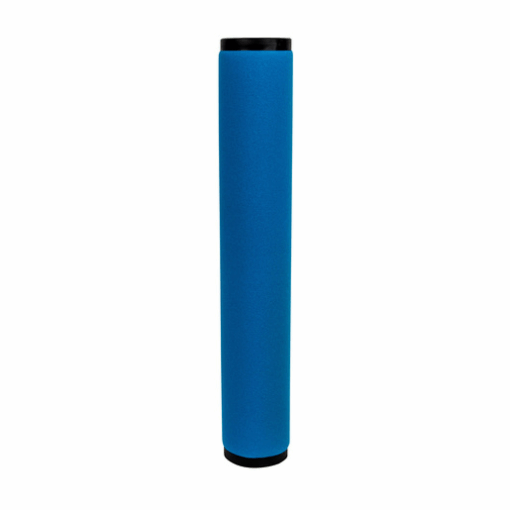

E3-54 Hankison Filter Element 3210794
$486.80
The Hankison E3-54 is a Grade 3: Max Eff. Oil Removal. Designed for coalescing ultra-fine oil aerosols, this filter removes solid particulate to 0.01 microns with a 0.0008 ppm w/w maximum remaining oil content
Overview:
Grade 3: Max Eff. Oil Removal. Designed for coalescing ultra-fine oil aerosols, this filter removes solid particulate to 0.01 microns with a 0.0008 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF400 and is based on 100°F inlet temperature). The first stage of filtration utilizes a coated, closed cell foam sleeve that acts as a prefilter and flow dispenser, while the second stage filtration employs multiple layers matrix blended fiber media for ultra-fine coalescence. Grade 3: Max Eff. Oil Removal. Designed for coalescing ultra-fine oil aerosols, this filter removes solid particulate to 0.01 microns with a 0.0008 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF400 and is based on 100°F inlet temperature). The first stage of filtration utilizes a coated, closed cell foam sleeve that acts as a prefilter and flow dispenser, while the second stage filtration employs multiple layers matrix blended fiber media for ultra-fine coalescence. (3210794)
Specification:
| Weight | 3 lbs |
|---|---|
| Dimensions | 12 × 4 × 4 in |
