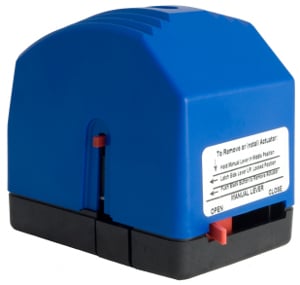

AP13A000 Invensys Erie Actuator
$184.20
Invensys AP13A000 24VAC VM Series Proportional Actuator Normally Closed Spring Return
Invensys AP13A000 24VAC VM Series Proportional Actuator Normally Closed Spring Return
Actuator: (AP13A000):
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC, 0 to 5 VDC, 4 to 20 mAdc, 5 to 10 VDC
- Loss of Power Type: Spring Return
- Power Input Voltage: 24 VAC
- Leads and Connections: No Leads
- Mechanical Movement: Rotary
- Protection Rating: NEMA 1
- Product Line: Schneider Electric
- Product Range: Erie PopTop
- Product Series: AP
- Actuator Use: Zone Valves
Product Specifications
| Actuator Housing Material | Polymer |
| Actuator Type | Electric |
| Actuator Use | Zone Valves |
| Auxiliary Switch | No |
| By Schneider | Yes |
| California Residents | WARNING:This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Control Signal | Proportional/Modulating |
| Control Signal Range | 0 to 10 VDC |
| 0 to 5 VDC | |
| 4 to 20 mAdc | |
| 5 to 10 VDC | |
| Humidity | 5 to 95% non-condensing |
| IP Protection Rating | IP10 |
| Leads and Connections | No Leads |
| Loss of Power Type | Spring Return |
| Mechanical Movement | Rotary |
| Motor Type | AC Synchronous |
| NEMA Protection Rating | NEMA 1 |
| Override | Automatic reset |
| Position Indicator | Housing scale |
| Power Consumption Running VA | 1.70 VA |
| Power Input Frequency | 50 Hz |
| 60 Hz | |
| Power Input Voltage | 24 VAC |
| Power Input Voltage AC Tolerance | Plus 25% or minus 15% |
| Product Line | Schneider Electric |
| Product Range | Erie PopTop |
| Product Series | AP |
| Temperature Ambient Operating Range | 1.6 to 51.6 C (35 to 125 F) |
| Temperature Shipping and Storage Range | -40 to 70 C (-40 to 158 F) |
Documents
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 5 × 3 in |
