AH2E112A Asco Actuator

Datasheet

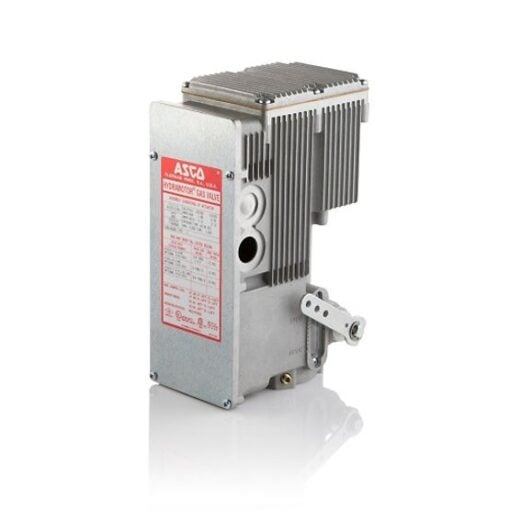

The Asco AH2E112A Actuator 120V 6/14 SEC.

The ASCO Series AH2E On-Off Hydramotor is a push-type, self-contained, electrohydraulic linear actuator that extends when powered and retracts by spring force upon power interruption. The Hydramotor provides a fast spring return shutoff time of 1 second or less. When the actuator is mounted to a V710 gas valve, position indicators on both sides of the actuator show the valve´s open or closed position. The AH2E On-Off Hydramotor/V710 gas valve combination provides main line control for boiler, furnace, and oven applications plus industrial and commercial burners.

Specifications

• Valve Actuation
  • Motorized
• Body Material
  • Aluminum
• Voltage
  • 110 AC, 120 AC, 220 AC, 230 AC, 24 AC
• Standards / Regulations
  • CSA, FM, Type 1, Type 4, Type 7, UL

Features

• Broad ambient temperature range suitable for hot (150° F/66° C) or frigid (-40° F/-40° C) environments
• Slow- or fast-opening constructions make it suitable for a variety of applications
• Type 1 General Purpose enclosure standard, optional Type 4 Watertight enclosure available for outdoor or indoor wash down installations
• Rugged construction ensures high reliability and durability
• Visual indication of valve open & closed position is standard
• Optional electrical interlock proof of closure switch is available
• Mountable in any position for installation flexibility
• UL Listed, FM Approved, CSA Certified
