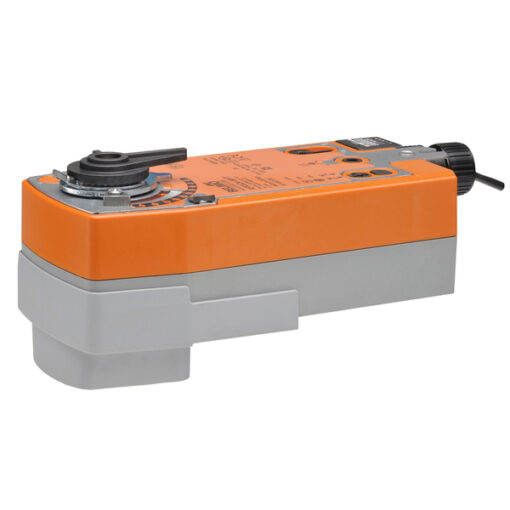

AFRX24-MFT Belimo MULTI FUNCTION PROPORTIONAL Spring RETURN Actuator

The Belimo AFRX24-MFT Actuator Motor, Spring Return, 180 in-lb 500 Ohm for 4-20mA, 1500 Ohm for PWM, floating point and On/Off, 24Vac, 24Vdc

Tech Sheet

Specifications

Actuator Type: Spring return
Application: Water
Control Type: MFT/Programmable
Degree of Protection:
• IP54
• NEMA 2
• UL Enclosure Type 2
Electrical Connection: Cable
Gateways:
• UK24BAC
• UK24MOD
• UK24LON
Manual Override:
• 5 mm hex crank (3/16″ Allen)
• supplied
Power Consumption (Running): 7.5 W
Product Type: Actuator
Protection category: IP54
Running Time (Fail-safe): <20 s
Running Time (Motor):
• Default 150 s
• variable 70…220 s
Torque: 180 in-lb [20 Nm] Voltage AC/DC: AC/DC 24 V
