AA18 Veris
$63.60
Accessory,Pitot Tube Kit 8″

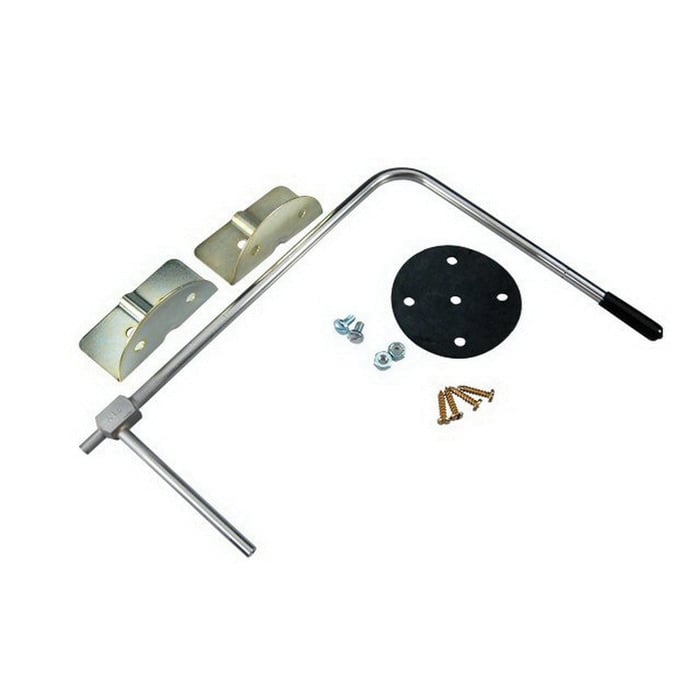

The Veris AA18 Accessory,Pitot Tube Kit 8″
SPECIFICATIONS
| Application Zone | : | Plant Room |
| Application | : | Air velocity kit |
| Brand | : | Veris |
| Dimension Probe Diameter | : | 5/16″ (8 mm) |
| Dimension Probe Length | : | 8-5/8″ (219 mm) |
| Fitting Size | : | 1/4″ (6 mm) |
| Model | : | AA18 |
| Mounting | : | Duct |
| Product Type | : | Accessory |
| Range | : | PX3 Series |
FEATURES
The AA18 stainless steel pitot tubes are constructed from corrosion resistant stainless steel with permanently etched insertion depth graduations for a lifetime of service. The static pressure port is parallel to the sensing tube to allow quick, easy alignment of the tube with air flow. A universal model fits the user supplied 3/4 in schedule 40 pipe in any length.
- Low sensitivity to misalignment up to 15 deg
- No calibration needed due to ASHRAE tip design
- Silver soldered connections for leak-proof operations
| Weight | 3 lbs |
|---|---|
| Dimensions | 13 × 4 × 2 in |
