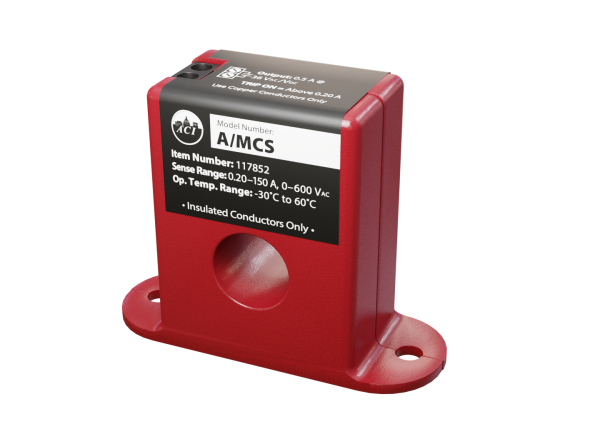

A/MCS ACI Current Status Switch (117852)
$27.00
Mini, Fixed Current Switch, Solid Core, NO, 0 to 150A Range, <0.20A Trip Point
Product overview
Mini, Fixed Current Switch, Solid Core, NO, 0 to 150A Range, <0.20A Trip Point
Application
- On/Off “Status” Indication
- Local Alarms such as Strobes/Audible Alarms
- Pumps
- Fans
- Compressors
- Lighting Status and Usage Information
- Ovens
- Process Control
- Industrial Equipment
- OEM Opportunities
Product specifications
| Monitored Current Type: | AC Current |
| Maximum AC Voltage: | 600 VAC |
| Operating Frequency Range: | 50/60 Hz |
| Core Style: | Solid-Core and Split-Core Versions available (See Ordering Grid) |
| Sensor Power: | Induced from the Monitored Conductor (Insulated Conductors only) |
| Amperage Range: | See Ordering Grid |
| Isolation Voltage: | 2200 VAC |
| Trip Point Style: | Fixed Trip Point |
| Contact Type: | Normally-Open “N/O” |
| “Status” Contact Rating: | 0.5A Continuous @ 36 VAC/VDC |
| “Status” Contact “On” Resistance | “Off” Resistance: | < 0.5 Ohms (tripped) | > 1 Meg Ohms (Open) |
| Response Time: | A/MCS: < 50 mS typical | A/MSCS: < 40 mS typical |
| Aperture Size: | 0.53” (13.46 mm) |
| Operating Temperature Range: | -22 to 140ºF (-30 to 60ºC) |
| Operating Humidity Range: | 0 to 95%, non-condensing |
| Storage Temperature | RH Range: | 41 to 95°F (5 to 35°C) | 40 to 85% RH, non-condensing |
| Enclosure Material | Flammability Rating: | PC/ABS (Polycarbonate/ABS Blend) | UL94-V0 |
| Wiring Connections: | 2 Position Screw Terminal Block (Not Polarity Sensitive) |
| Wire Size: | 16 to 22 AWG (1.31 mm2 to 0.33 mm2) Copper Wires only |
| Terminal Block Torque Rating: | 4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm) |
| Minimum Mounting Distance: | 1” (2.6 cm) between current switch (Relays, Contactors, Transformers) |
| Agency Approvals: | UL/CUL US Listed (UL 916) Energy Management Equipment (File # E334792), CE, RoHS2, WEEE |
| Product Weight: | A/MCS: 0.15 lbs. (0.068 kg) | A/MSCS: 0.20 lbs. (0.091 kg) |
| Product Dimensions: | A/MCS (Solid-Core): 2.510” (63.82 mm) x 0.940” (23.94 mm) x 2.000” (50.80 mm)A/MSCS (Split-Core): 2.650” (67.19 mm) x 0.940” (23.94 mm) x 2.380” (60.49 mm) |
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 5 × 2 in |
