50926 Spirax Sarco Trap
$372.40
3/4 in. FT15 F&T STEAM Trap, FNPT, 450 deg F, 15 psi, Cast Iron

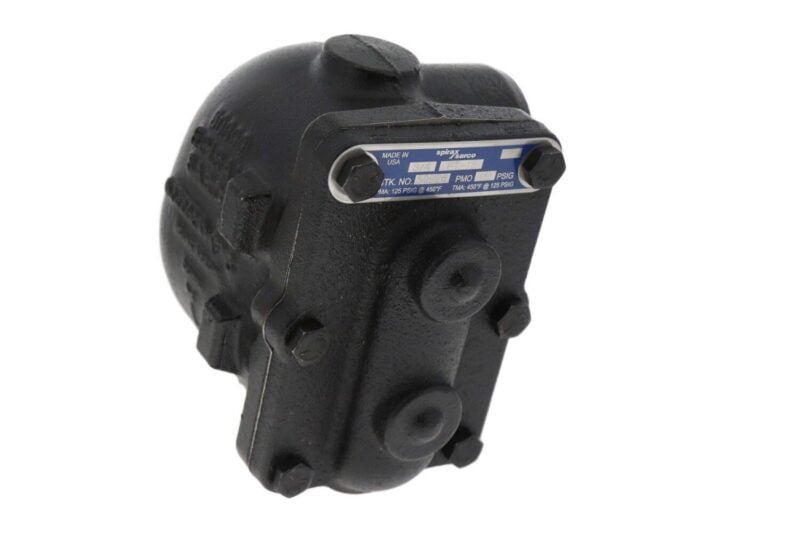

The Spirax Sarco 50926 3/4 in. FT15 F&T STEAM Trap
The trap contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature, while non-condensable gases are released by a separate internal balanced pressure thermostatic air vent.
Typical Applications
All process equipment, particularly when controlled by modulating temperature control valves; unit heaters, air heating coils, heat exchangers and steam main drip stations.
SPECIFICATIONS
| Pressure Rating | : | 15 psi Operating |
| End Style | : | FNPT |
| Nominal Size | : | 3/4 in |
| Material | : | Cast Iron |
| Series | : | FT-15 |
| Dimensions | : | 5.75 in H x 6.2 in W |
| Length | : | 4.6 in |
| Temperature Rating | : | 450 deg F Operating |
Additional Information
| Weight | 9 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
