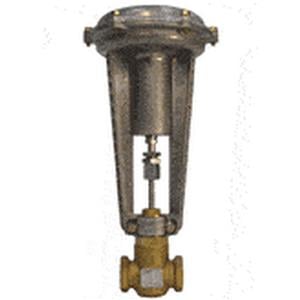

277-03114 Siemens Valve Assembly
$587.42
Valve assy 2W NO, 1-1/4″ 16Cv Eq Pct SS Trim FxF, 8″ Pneu Act
The Siemens 277-03114 2WNO SS =% OR FXF 1.25/16.00
Description
The Flowrite 599 Series two-way valves are designed to work with either a pneumatic or electronic actuator with a 3/4-inch (20 mm) stroke. They are available in ANSI Class 250 for normally open or normally closed action.
Features
- ANSI Leakage Class IV (0.01% of Cv)
- Cartridge type packing
- Choice of brass or stainless steel trim
- Direct-coupled universal bonnet
- Choice to two flow characteristics
Application
Flowrite valves are generally recommended for water, steam, and 50% water-glycol solutions
Normally ships in 7-10 days or sooner… Call 800-323-2739 for details!
| Weight | 8 lbs |
|---|---|
| Dimensions | 2 × 2 × 2 in |
