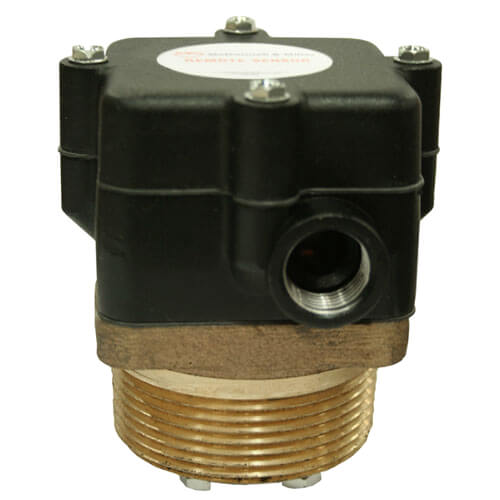

179528 Model RS-5-BR-1 McDonnell & Miller High Pressure Sensor

Datasheet

Series-RS-X-BR-1:

• NEMA 4X Enclosure
• For sophisticated multi-level control in tanks, boilers and hydronic systems
• Remote sensors, which thread into the top of the boiler or tank, are available with 1, 2, 3, 4 or 5 probes of varying lengths that can easily be cut to desired set points
• Probe lengths 12 – 72″ (2.5 – 183cm) in 12″ (2.5cm) increments (purchased separately)
• Control, remote sensor and probe(s) must be ordered separately. Order Spacer S-4 when 2 or more probes greater than 36″ (914mm) will be used
• No blow down required
• Maximum Temperature 406°F (208°C)
• Maximum Pressure 250 psig (17.6 kg/cm)
