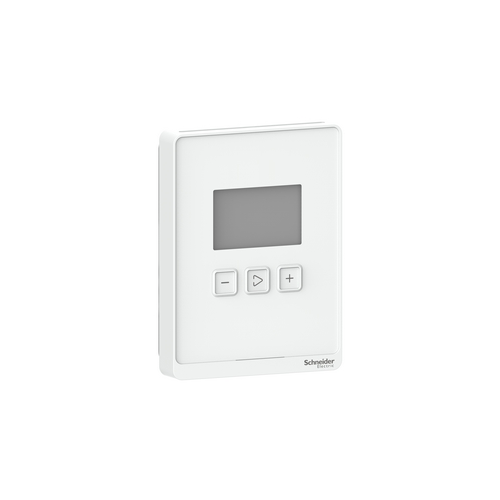

SLPWLC2 Schneider Electric Sensor
$466.50
Sensor, SpaceLogic SLP Series, room, CO2, humidity, temperature, segmented LCD, BACnet MSTP/Modbus outputs, optimum white housing
Sensor,CO2,RH,LCD,BAC/MB,Optm Wh
The SpaceLogic SLP Series of air quality wall sensors for rooms is a flexible multisensor platform for use with BAS controllers designed to accept BACnet MSTP or Modbus outputs. Housings are available in Medium matte white and Optimum faces available in black and white. All housing types are available with three user interface options: touchscreen, LCD with three buttons and blank. CO2 and temperature sensors are included with all SLP Series air quality sensors. Models with VOC sensors and relative humidity sensors are also available.
Product Specifications
| [Us] rated supply voltage | 20…30 V DC |
| 24 V AC | |
| Application | Fan speed controller |
| HVAC | |
| Temperature control | |
| Brand | Schneider Electric |
| By Schneider | Yes |
| Color | White |
| Communication Port Protocol | BACnet |
| Modbus | |
| Connections – Terminals | Screw terminal – 2 AWG 24…AWG 18) |
| Control Type | – button |
| + button | |
| Arrow button | |
| Depth | 0.9 in (23.7 mm) |
| Device Presentation | Complete product |
| Display Size | 2 inch |
| Display Type | LCD display |
| Final Result for Connectable | Connectable ready |
| Final Result for Flywheel performance tracking | Connectable ready |
| Function Available | With CO2 sensor |
| With humidity sensor | |
| With temperature sensor | |
| Global Keywords | BACnet |
| HVAC | |
| IAQ | |
| Modbus | |
| Sensor | |
| SLP | |
| Height | 3.3 in (85 mm) |
| Humidity Setting Range | 0…100 % |
| Hysteresis | 1.5 % |
| Information Displayed | CO2 |
| Menu-driven user interface | |
| Relative humidity | |
| Temperature | |
| Temperature set point | |
| Location | Living Space |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Mounting Support | Wall Mount |
| Network Frequency | 50 Hz |
| 60 Hz | |
| Product Alert | We are currently experiencing delays on this product. As we work to return it to normal, inventory and lead times may not be accurate. Please use the chat feature to contact CCC for additional details |
| Product Certifications | CE conforming to EN 61000-6-2 |
| CE conforming to EN 61000-6-3 | |
| CE conforming to EN 61326-1 | |
| CULus | |
| EAC | |
| ICES-003 | |
| RCM | |
| Product Name | SpaceLogic Room Unit |
| Product Or Component Type | Sensor |
| Product Specific Application | Humidity control |
| Range | SpaceLogic |
| Range Compatibility | EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers |
| Repeat Accuracy | +/- 20 ppm |
| SCIP Number | 89bfcc78-dfb0-469a-8211-c50fc133952d |
| Sensor Type | NDIR (non-dispersive infrared) |
| thin-film capacitive | |
| transmitter | |
| Standards | FCC Part 15 class B |
| UL 916 | |
| Surface Finish | Glossy |
| Sustainable offer status | Green Premium product |
| Temperature Ambient Operating Range | 32.0000000000…122.0000000000 °F (0…50 °C) |
| Temperature Setting Range | 32.0000000000…122.0000000000 °F (0…50 °C) |
| 50.0000000000…95.0000000000 °F (10…35 °C) | |
| Type Of Measurement | Carbon Dioxide (CO2) |
| Humidity | |
| Temperature | |
| Width | 4.5 in (115 mm) |
Documents
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 9 × 9 in |
